CS4
SUPPLEMENT FOR KAPPABRIDGES FOR MEASUREMENTS
OF HIGH-TEMPERATURE VARIATIONS OF MAGNETIC SUSCEPTIBILITY
- FOR KLY5-A, MFK2-FA OR MFK1-A/FA
- TEMPERATURE RANGE
20°C - 700°C
- HIGH SENSITIVITY
- AIR OR ARGON ATMOSPHERE
20°C - 700°C
General description

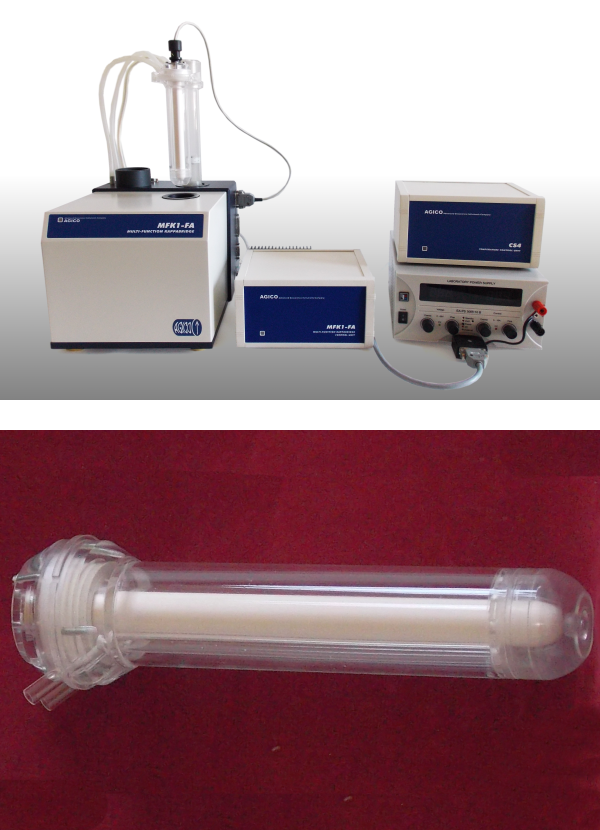

The CS4 High Temperature Furnace Apparatus is optional attachment for KLY5-A, MFK2-FA and MFK1-FA/A Kappabridges designed for measurement of the temperature variations of low-field magnetic susceptibility of minerals, rocks and synthetic materials in the temperature range from ambient temperature to 700°C. Measurements can be performed under the protective argon atmosphere to prevent oxidation of measured specimen.
The quasicontinuous measurement process is fully automated, being controlled by the software Sufyte5. Data processing software Cureval serves for advanced analysis of thermomagnetic curves such as empty furnace measurement substraction, Curie temperature estimation and separation of ferromagnetic and paramagnetic part of susceptibility.
Main features
| ■ | Lowest detectable susceptibility change 1x10-7 SI |
| ■ | Measurement at high temperatures up to 700° C |
| ■ | Software controlled heating and cooling modes |
| ■ | Measurement in the air or argon atmosphere |
| ■ | 500 to 700 pairs of susceptibility and temperature measurements to define a thermomagnetic curve |
Technical specifications
| Nominal specimen volume (powder or fragments) | 0.25 cm3 | |
| Inner diameter of measuring vessel | 6 mm | |
| Temperature range | room temperature up to 700°C | |
| Accuracy of temperature determination | ±2 °C | |
| Sensitivity to susceptibility changes | 1x10-7 SI | |
| Power requirements | 100 - 240 V, 50/60 Hz, 700 VA |
