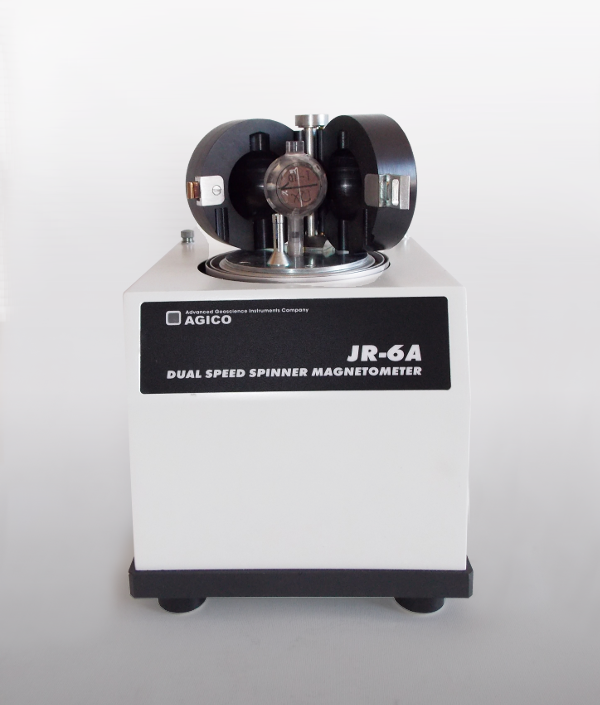

JR-6

DUAL SPEED SPINNER MAGNETOMETER

---

• MEASUREMENTS OF REMANENT MAGNETIZATION
• HIGH SENSITIVITY
• MEASUREMENT OVER
  11 MAGNITUDES (10^-6 - 10⁴ A/m)
• TWO SPEEDS OF ROTATION
• EASY OPERATION

General description

This is the most sensitive and accurate instrument for measurement of remanent magnetization of rocks based on classical (non-quantum, non-cryogenic) principles. Its outstanding sensitivity enables even rocks with very weak remanent magnetization to be measured, for example, various sedimentary rocks including limestones and quartzites.

Two rotation speeds are available, the higher one (87.7 rps) enabling the maximum sensitivity to be reached, and the lower one (16.7 rps) enabling the soft specimen to be measured.

Versions

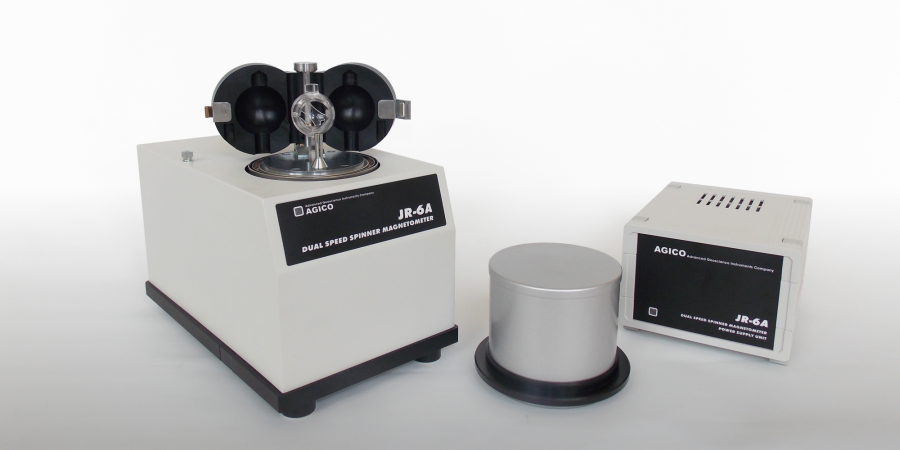

JR-6A

JR-6A (automated) version is destined for rapid and accurate measurement of remanent magnetization. The specimen is manually only inserted into the specimen holder and the instrument automatically changes the sample orientations to obtain the remanence vector.

JR-6

JR-6 version is the non-automated version of the instrument with the same sensitivity and accuracy. It differs only in that the sample's orientation must be changed by hand as with all other magnetometers. According to the accuracy required, one can measure the specimen in two, four or six orientations. Can be upgraded to JR-6A version on-site by AGICO technician.

Main features

Technical specifications

Specimens to be measured
