KLY5
KAPPABRIDGES FOR MEASUREMENTS
OF MAGNETIC SUSCEPTIBILITY
- IN-PHASE AND OUT-OF-PHASE
- ANISOTROPY
- FIELD VARIATIONS
- TEMPERATURE VARIATIONS

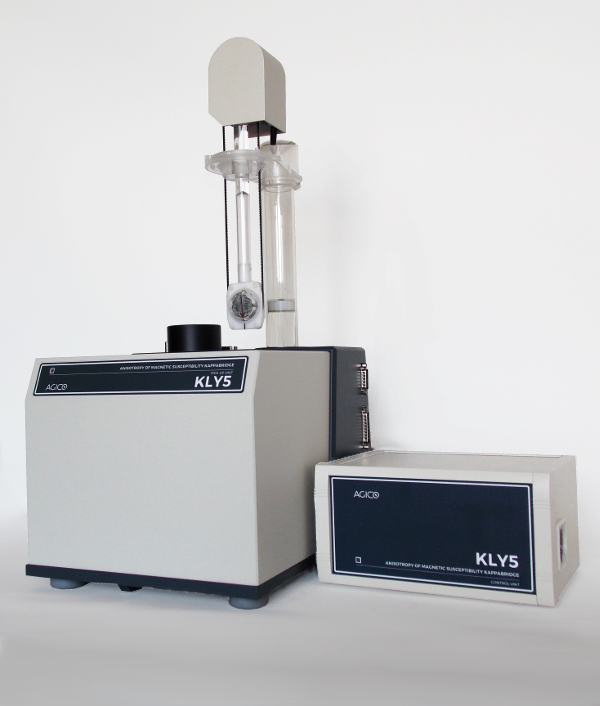

General description
The KLY5 Kappabridges are the most sensitive commercially available laboratory instruments for measuring magnetic susceptibility and anisotropy of magnetic susceptibility (AMS). KLY5 series brings precise absolute measurement of both in-phase and out-of phase components of magnetic susceptibility and anisotropy of magnetic susceptibility.
Versions
KLY5-A
Fully equipped with special Up/Down mechanism and rotator allowing to use spinning specimen method which uses 3D rotator or classic rotator for easy, rapid and precise AMS measurements. Automatic routines for investigation field variations of AMS as well as bulk susceptibility are incorporated for better user comfort. Optional attachments CS4 and CS-L enables measurements of temperature variation of bulk susceptibility from -192°C up to 700°C.
KLY5-B
Basic version of Kappabridge for manual measurements of AMS, bulk susceptibility and field variations of magnetic susceptibility without Up/Down mechanism, rotator and CS4 or CS-L support. To faciliate AMS measurements magnetic susceptibility must be manually measured in 15 different orientations. Can be upgraded to KLY5-A version, but such upgrade has to be done in AGICO facility.
Software
Data acquisition software Safyr controls all particular functions of the Kappabridges, calculate results of individual measurements as well as advanced statistics on measured data. Standard visualisation of the results is also incorporated. For more in-depth analysis of AMS AGICO provides Anisoft - advanced software for processing of AMS datasets.
Main features
| ■ | High sensitivity 2 x 10-8 SI (for field 400 A/m) |
| ■ | High sensitivity of phase determination 0.1° |
| ■ | Fully automatic zeroing system |
| ■ | Measurement of in-phase and out-of-phase susceptibility |
| ■ | Automated measurement in variable fields |
| ■ | Quick AMS autorange |
| ■ | Enhanced resistance to power lines noise |
| ■ | Galvanically isolated USB connection |
| ■ | Sophisticated software support |
| ■ | Built-in circuitry for controlling optional CS4 Furnace and CS-L Cryostat |
| ■ | Optionally 3D rotator (KLY5-A) |
Technical specifications
| Operating frequency | 1220 Hz |
| Field intensity range | 5 - 750 A/m (peak) |
| Field homogeneity | 0.2 % |
| Measuring range | up to 0.5 (SI) at 750 A/m |
| up to 1 (SI) at 400 A/m | |
| Accuracy within one range | ±0.1 % |
| Accuracy of absolute calibration | ±3 % |
| Pick-up coil inner diameter | 43 mm |
| Power requirements | 100 - 240 V, 50/60 Hz, 40 VA |
Specimens to be measured
| For spinning method | |
| Cylinder (regularly shaped specimens) | |
| Diameter | 25.4 ± 1 mm |
| Length | 22.0 ± 1 mm |
| Cube | 20x20x20 mm |
| For static method as for spinning method plus | |
| Cube | 23x23x23 mm |
| ODP type | 26x25x19.5 mm |
| Fragments | up to 40 cm3 for bulk susceptibility |
Kappabridges versions comparison
Kappabrige comparison in more detail can be found here.
| MFK2-FA | MFK2-FB | KLY5-A | KLY5-B | |
| Bulk susceptibility | ✔ | ✔ | ✔ | ✔ |
| Anisotropy of magnetic susceptibility | ✔ automatic |
✔ manual |
✔ automatic |
✔ manual |
| Field variations of bulk susceptibility | ✔ automatic |
✔ manual |
✔ automatic |
✔ manual |
| Field variations of anisotropy of susceptibility | ✔ automatic with 3D Rotator |
✔ manual |
✔ automatic with 3D Rotator |
✔ manual |
| Frequency variations of bulk susceptibility | ✔ | ✔ | ✖ | ✖ |
| Frequency variations of anisotropy of susceptibility | ✔ semi-automatic |
✔ manual |
✖ | ✖ |
| High-temperature variations of bulk susceptibility | ✔ in combination with CS4 |
✖ | ✔ in combination with CS4 |
✖ |
| Low-temperature variations of bulk susceptibility | ✔ in combination with CS4 and CS-L |
✖ | ✔ in combination with CS4 and CS-L |
✖ |
| Absolute out-of phase susceptibility | ✖ | ✖ | ✔ | ✔ |
| Relative changes out-of phase susceptibility | ✔ lower precision |
✔ lower precision |
✔ higher precision |
✔ higher precision |
