LABORATORY INSTRUMENTS FOR MEASUREMENTS
OF MAGNETIC PROPERTIES OF ROCKS

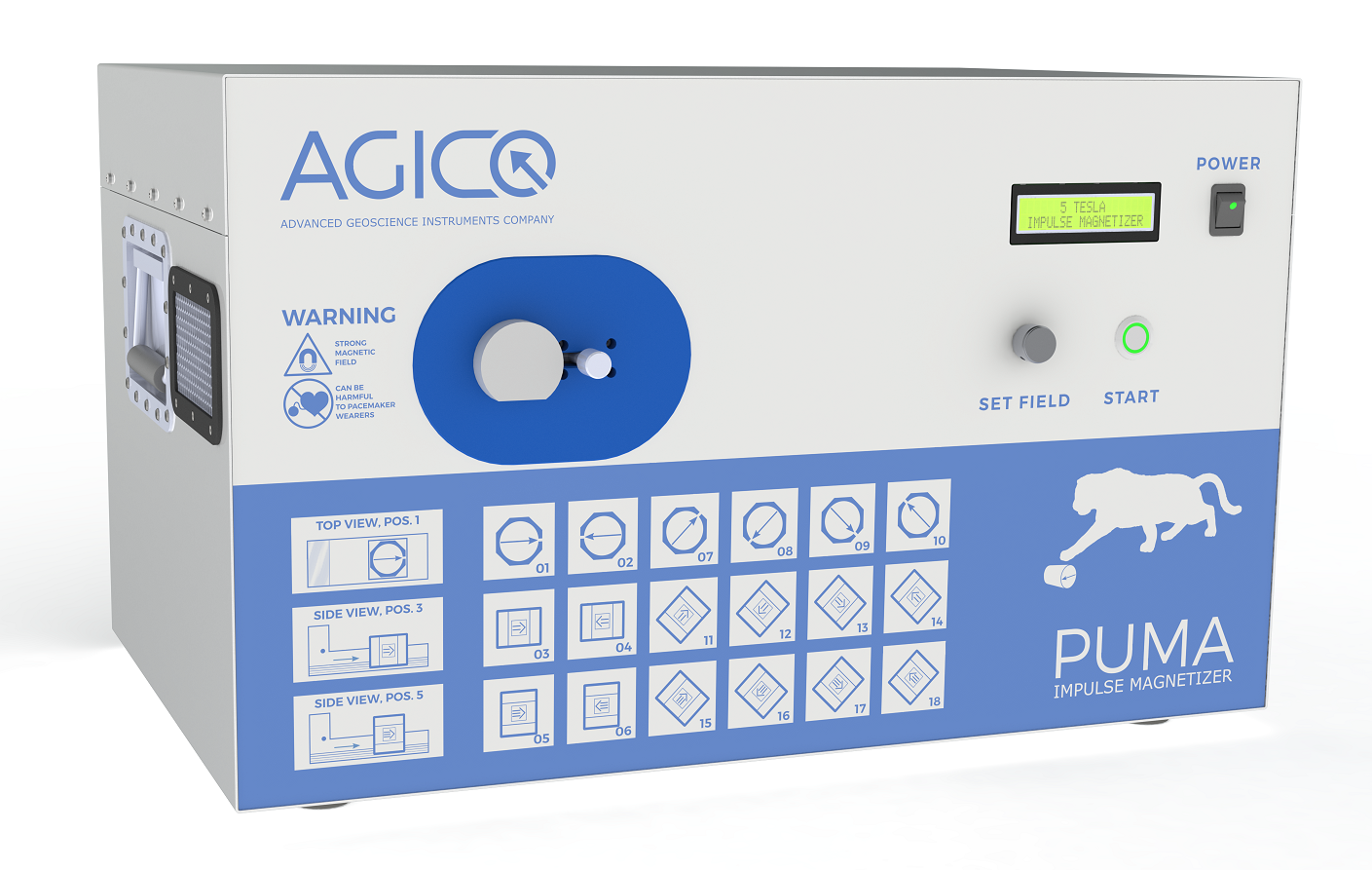

puma

PUMA

STATE OF ART
IMPULSE MAGENTIZER
FOR PALEOMAGNETISM


  • IMPULSE MAGNETIZATION
  • INTENSITY OF FIELD
    1 mT - 5000 mT (5 Tesla)
  • 18 POSSIBLE ORIENTATIONS OF SPECIMENS

General description

PUMA Impulse Magnetizer The PUMA is designed as a precise high field impulse magnetizer. Inner diameter of magnetization coil is 41mm which allows to magnetize standard-sized paleomagnetic specimens in any orientation. PUMA enables to impart isothermal remanent magnetization (IRM) of the specimens in the wide range of intensities of magnetic fields from 1mT up to 5T. Elaborate design of the instrument provides precise setting of the pulse intensity as well as high homogeneity of the field over entire specimen volume.

Magnetization process is controlled by user friendly software PUMA or directly on the instrument pannel.

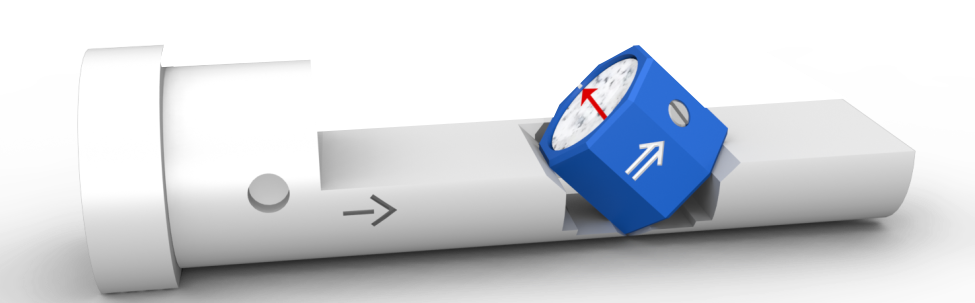

puma holder

Main features

Impulse magentization
1 mT - 5000 mT (5 Tesla)
18 magentization directions
1 inch cylinders or 20/23 mm cubes
User friendly software

Technical specifications

Impulse field 1 - 5000 mT
Length of pulses ~ 7 ms
Dimensions, mass: 715 x 435 x 500mm (28.2 x 17.1 x 19.7 inch), ~78 kg (172 lbs)
Power requirements 120 or 230 V, 50/60 Hz, 1600 VA

Specimens to be demagnetized

Cylinder (regularly shaped specimens)
     Diameter 25.4 ± 1 mm
     Length 22.0 ± 1 mm
Cube 23x23x23 mm
20x20x20 mm


AGICO, Inc, Brno, Czech Republic

ROCK MAGNETISM MEASUREMENTS WITH TRADITION

Last update >>> 10/2024
