LABORATORY INSTRUMENTS FOR MEASUREMENTS
OF MAGNETIC PROPERTIES OF ROCKS

Products


KLY5

In-phase and Out-of-phase Kappabridge

  • Measurement of in-phase and out-of-phase susceptibility.
  • Measurement of anisotropy of magnetic susceptibility. Both in-phase and out-of-phase components.
  • High sensitivity 2 x 10-8 SI. (In-phase susceptibility).
  • High sensitivity of phase determination 0.1°.
  • Automatic (KLY5-A) or manual (KLY5-B) versions.
  • Automated measurement in variable fields.
  • Built-in circuitry for controlling optional CS4 Furnace and CS-L Cryostat
  • Optional 3D rotator (KLY5-A).
Details

MFK2

Three frequency Kappabridge

  • Three operating frequencies (976 Hz, 3094 Hz and 15616 Hz).
  • Field variations of magnetic susceptibility.
  • High sensitivity 2 x 10-8 (SI).
  • Rapid anisotropy of magnetic susceptibility (AMS) measurement (MFK2-FA).
  • Built-in circuitry for controlling optional CS4 Furnace and CS-L Cryostat.
  • Advanced diagnostics.
  • Sophisticated software support.
  • Optional 3D rotator (MFK2-FA).
Details

BCK1

Big Coil Kappabridge

  • Measurement of in-phase and out-of-phase susceptibility.
  • Measurement of anisotropy of magnetic susceptibility. Both in-phase and out-of-phase components.
  • High sensitivity
  • High sensitivity of phase determination 0.1°.
  • Measurement in variable fields.
Details

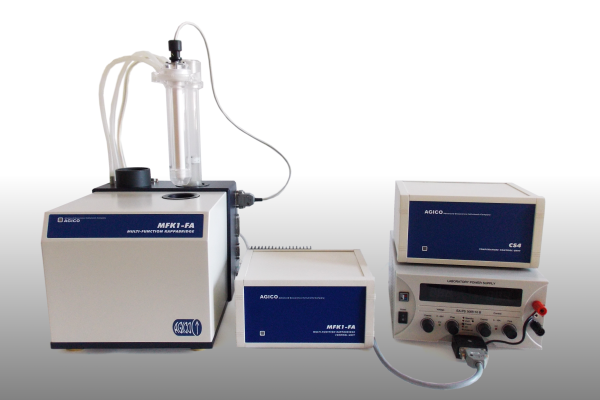

CS4

High temperature variation
of magnetic susceptibility

  • Optional accessory for KLY5-A, MFK2-FA and MFK1-FA/A Kappabridges.
  • Temperature range up to 700°C.
  • High sensitivity.
  • Software controlled heating and cooling modes.
  • Measurement in the air or argon atmosphere .
Details



CS-L

Low temperature variation
of magnetic susceptibility

  • Optional accessory for KLY5-A, MFK2-FA, MFK1-FA/A, KLY-3S and KLY-4S Kappabridges.
  • Temperature range: -192°C to 0°C.
  • High sensitivity.
Details

3D ROTATOR

  • Optional accessory for KLY5-A, MFK2-FA and MFK1-FA/A Kappabridges.
  • Shortens measurement of AMS to less than 2 minutes per sample.
  • Improved comfort of measurements of AMS.
  • Specimen inserted only once.
  • Enables automatic measurement of field variations of AMS.
  • Suitable for cylindical (diameter 25.4 mm, length 22 mm) or cubic (edge of 20 mm) specimens.
Details

JR-6

Spinner Magnetometer

  • Most sensitive and accurate commercially available instrument for measurement of remanent magnetization of rocks based on classical (non-quantum, non-cryogenic) principles.
  • Automatic (JR-6A) or manual (JR-6) positioning of samples.
  • Two speeds of rotation .
  • Sophisticated measuring and data processing software.
Details

LDA5

AF Demagnetizer

  • Alternating field up to 200 mT (peak).
  • Demagnetization of tumbling or static specimen.
  • Automatic tuning of alternating field frequency.
  • Automated, computer-controlled demagnetization process (optionally coupled with JR-6 software).
  • Four rates of alternating field decrease.
  • Can be paired with PAM1 - Anhysteretic / Pulse Magnetizer.
Details

PAM1

Anhysteretic / Pulse Magnetizer

  • Supplement of LDA5 AF Demagnetizer.
  • Direct Magnetizing Field 0 to 500 μT (Anhysteretic Magnetizer ) or 0 to 20 mT (Pulse Magnetizer).
  • Length of Direct Field Pulses: 0.01 to 10 s.
  • Computer-controlled magnetization process (optionally coupled with JR-6 software).
  • Automatic positioning, 18 specimen orientations.
  • Partial anhysteretic magnetization .
  • Low-field isothermal magnetization with variable time of direct field pulses
Details

PUMA

Impulse Magnetizer

  • State of art impulse magnetizer for paleomagnetic specimens.
  • Impulse Magnetizing Field 1 to 5000 mT.
  • Length of Direct Field Pulses: ~ 7 ms s.
  • Computer or panel controlled magnetization process
  • 18 defined specimen orientations - 1 inch cylinders or 20/23 mm cubes.
Details

Previous models

Older or discontinued products

  • MFK1 Multifunction Kappabridges
  • CS-3 Furnace apparatus
  • KLY-4 series Kappabridges
  • KLY-3 series Kappabridges
  • JR-5 Spinner Magnetometers
  • LDA-3 AF Demagnetizer
  • AMU-1 Anhysteretic Magnetizer
Details
